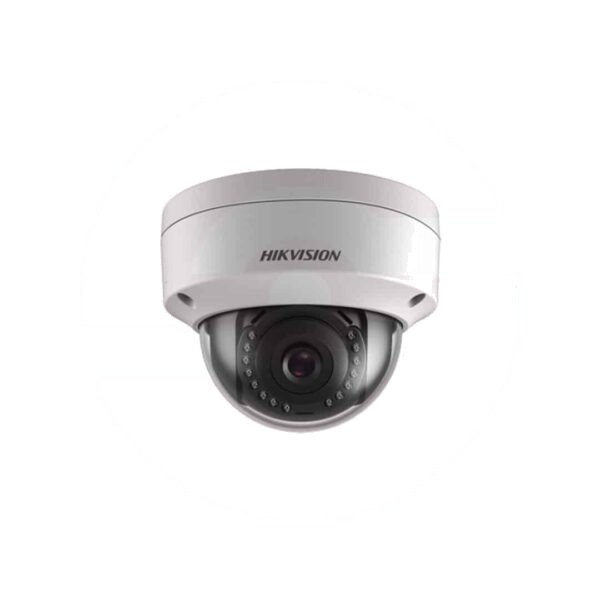

Hikvision DS-2CD1123G2-LIU

Name: Hikvision DS-2CD1123G2-LIU
Brand: Hikvision
SKU: DS-2CD1123G2-LIU
Price: 9800 PKR
Availability: InStock

SKU: DS-2CD1123G2-LIU Category: IP / Network Cameras In stock

Rs 9,800

Need a spec check, a bulk price or installation with it? Send an enquiry about this product

Specifications & details

Camera
Image Sensor 1/2.9″ Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Lens
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m
Illuminator
Supplement Light Type IR,White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm

Video
Main Stream
50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)
Video Compression
Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Region Of Interest (ROI) 1 fixed region for main stream

Audio
Audio Type Mono sound
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network
Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
User/Host
Up to 32 users

3 user levels: administrator, operator, and user
Client iVMS-4200,Hik-Connect
Web Browser
Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)Digital WDR
SNR≥ 52 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC,HLC,3D DNR
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Privacy Mask 4 programmable polygon privacy masks

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Built-In Microphone Yes
Reset Key-F: Yes

Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
Linkage Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General
Power
12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7.5 W
Material Metal & Plastic
Dimension Ø121.4 mm × 97.7 mm (Ø4.8″ × 3.8″)
Package Dimension 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight Approx. 550 g (1.2 lb.)
With Package Weight Approx. 800 g (1.8 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup And Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language English, Ukrainian
General Function Heartbeat, anti-banding ,mirror, password protection, password reset via email
