Hikvision

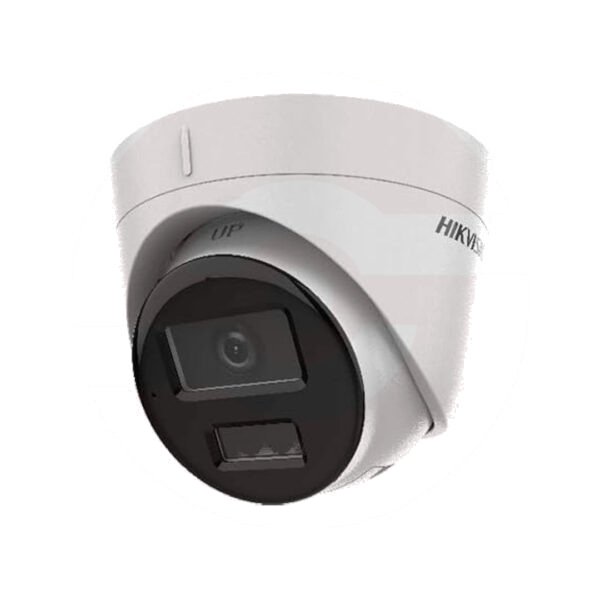

Hikvision DS-2CD1347G2H-LIU
Rs 16,000
4 MP ColorVu with Smart Hybrid Light Fixed Turret Network Camera
- High quality imaging with 4 MP resolution
- Support Human and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Built-in microphone for real-time audio security
- Water and dust resistant (IP67)
Need a spec check, a bulk price or installation with it? Send an enquiry about this product
- 100% original — 2 Years Official Warranty
- Free delivery over Rs 10,000 — cash on delivery available
- Installation available — call Asad on 0324-4298577
Specifications & details
- Camera
- Image Sensor 1/3″ Progressive Scan CMOS
- Max. Resolution 2560 × 1440
- Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8mm
- Focal Length & FOV
2.8 mm, horizontal FOV 96°, vertical FOV 52°, diagonal FOV 114°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.0
- DORI
- DORI
2.8 mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength850 nm
- Video
- Main Stream
50 Hz:
20 fps (2560 × 1440)
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1440)
24 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression
Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Audio
- Audio Type Mono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RCTP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live View Up to 6 channels
- API Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- Client iVMS-4200,Hik-Connect
- Web Browser
Plug-in required live view: IE 10, IE 11,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Image EnhancementBLC,HLC,3D DNR
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Built-In Microphone Yes
- Reset Key-F: Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm, exception
- Linkage Upload to memory card (-F model supports), trigger recording(-F model supports), upload to FTP,notify surveillance center, send email,trigger capture
- General
- Power
12 VDC ± 25%, 0.5 A, max. 6.0 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: IEEE 802.3af, Class 3, max. 7.5 W
- Material Metal & Plastic
- Dimension Ø 110 mm × 93 mm (Ø4.33″ × 3.66″)
- Package Dimension 150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
- Weight Approx. 420 g (0.9 lb.)
- With Package Weight Approx. 656 g (1.4 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup And Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Ukrainian
- General Function Heartbeat, anti-banding, mirror, password protection,password reset by email
- Approval
- Protection IP67: IEC 60529-2013
