Hikvision

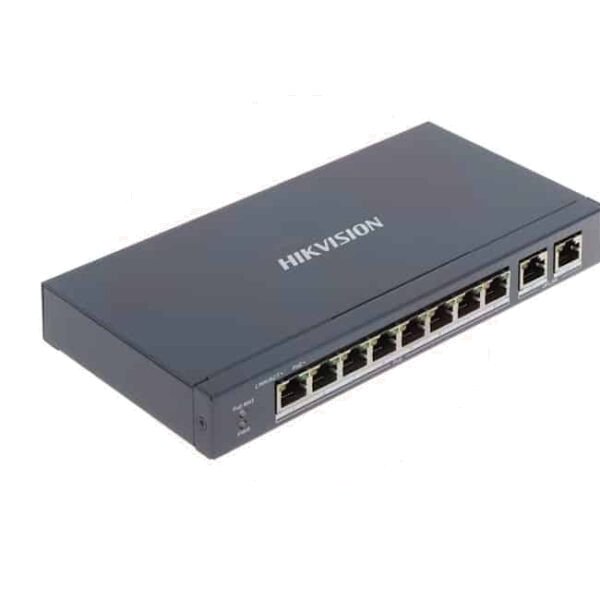

Hikvision DS-3E0310P-E/M
Rs 10,200
8 Port Fast Ethernet Unmanaged POE Switch
- 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 port.
- IEEE 802.3at/af standard for PoE ports (Max. 60 W PoE output).
- IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab standard.
- 6 KV surge protection for PoE ports.
- Up to 300 m long-range transmission.
- Wire-speed forwarding.
- Store-and-forward switching.
- Solid high-strength metal shell.
- Reliable fan-free design.
Need a spec check, a bulk price or installation with it? Send an enquiry about this product
- 100% original — 2 Years Official Warranty
- Free delivery over Rs 10,000 — cash on delivery available
- Installation available — call Asad on 0324-4298577
Specifications & details
- PoE Power Supply
- PoE Standard Ports 1 to 8: IEEE 802.3af, IEEE 802.3at
- PoE Power Pin Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
- PoE Port Ports 1 to 8
- Max. Port Power Ports 1 to 8: 30 W
- PoE Power Pudget 60 W
- Max. Power Consumption 65W
- Network Parameters
- Port Number 8 × 10/100Mbps PoE ports, and and 2 × Gigabit RJ45 ports
- Port Type RJ45 port, full duplex, MDI/MDI-X adaptive
- Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z and IEEE 802.3ab
- Forwarding Mode Store-and-forward switching
- Working Mode Standard mode (default), Extend mode
- High Priority Ports NA
- Ports For Long-Distance Transmission Ports 1 to 8
- MAC Address Table 16 K
- Switching Capacity 5.6 Gbps
- Packet Forwarding Rate 4.1664 Mpps
- Internal Cache4 Mbits
- General
- Shell Metal material, fan-free design
- Gross Weight 1.20
- Net Weight 0.555
- Dimension (L × H × D) 217.6 mm × 103.35 mm × 27.8 mm (8.57” × 4.07” × 1.09”)
- Operating Temperature -10°C to 40°C (14°F to 104°F)
- Storage Temperature -40°C to 85 °C -40°F to 185°F)
- Operating Humidity 5% to 95% (no condensation)
- Storage Humidity 5% to 95% (no condensation)
- Power Supply 48 VDC, 1.35 A
- Power Consumption In Idle < 5 W
