Hikvision
Hikvision iDS-7208HUHI-M1/X
Rs 32,000

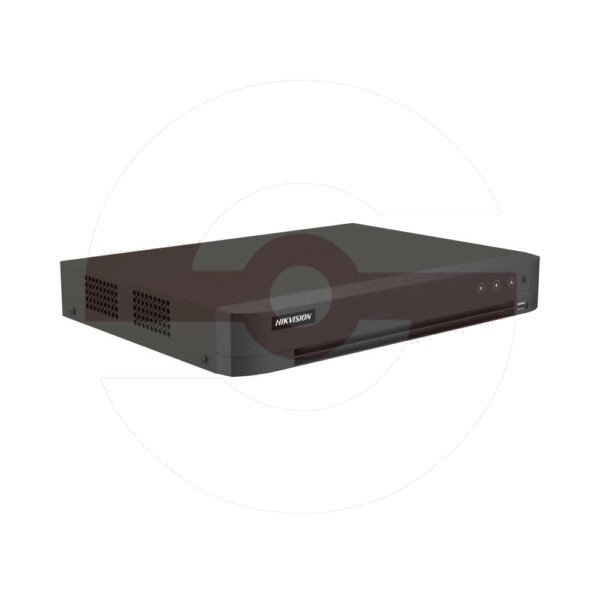

8-ch 5 MP 1U H.265 AcuSense DVR
- 8 channels and 1 HDD 1U AcuSense DVR
- Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
- Support 8-ch AcuSearch Technology
- Efficient H.265 pro+ compression technology
- Encoding ability up to 4K/8MP @ 8fps; 3K/5MP @12fps
- Up to 16 channels IP camera inputs, each channel up to 8MP
- Up to 24*1080P@30fps decoding ability
- 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
- Support All channels Motion Detection technology
Need a spec check, a bulk price or installation with it? Send an enquiry about this product
- 100% original — 2 Years Official Warranty
- Free delivery over Rs 10,000 — cash on delivery available
- Installation available — call Asad on 0324-4298577
Specifications & details
- Facial Recognition
- Face Picture Library
Up to 16 face picture libraries;
HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.
- Face Picture Comparison 4-ch face picture comparison alarm (HD analog camera)
- Perimeter Protection
- Human / Vehicle Analysis Up to 8-ch (advanced model)
- Facial Detection
- Facial Detection and Capture
Face picture detection, face picture search；
4-ch face picture capture
- Video and Audio
- IP Video Input
8 – ch (up to 16-ch), each up to 4 Mbps
Support H. 265+/ H.265 /H .264 + / H.264 IP cameras
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
1-ch, 4K (3840 × 2160) / 30Hz,
2K (2560 × 1440) / 60Hz,
1920 × 1080 / 60Hz,
1280 × 1024 /60Hz,
1280 × 720/ 60Hz
HDMI / VGA simultaneous output
- VGA Output
1-ch, 1920 × 1080 / 60Hz,
1280 × 1024 / 60Hz,
1280 × 720 / 60Hz
HDMI / VGA simultaneous output
- CVBS Input PAL / NTSC
- CVBS Output
1-ch, BNC (1.0 Vp-p, 75 Ω),
resolution: PAL : 704 × 576, NTSC : 704 × 480
- Synchronous Play back 8-ch
- HDTVI Input 8 MP (3840 × 2160) @ 12 / 15 fps, 3K (2960 x 1665) @ 25 / 20 fps,3K (3328 x1504) @ 20 fps ,5 MP (2560 × 1944) @ 20 fps, 4 MP (2560 × 1440) @ 25 / 30 fps ,1080P @ 25 / 30 fps, 720P @ 25/ 30fps
- AHD Input 5 MP (2560 × 1944) @20 fps, 4 MP (2560 × 1440) @ 25 / 30 fps,1080P @ 25 /30 fps, 720P @ 25 /30 fps
- HDCVI Input8 MP (3840 × 2160) @12/15 fps, 3K (2880×1620)@ 25 fps, 5 MP (2592 × 1944) @ 20 fps, 4 MP (2560 × 1440)@ 25 / 30 fps ,1080P @ 25 / 30 fps, 720 P @ 25 / 30fps
- Audio Output 1-ch , RCA (Linear, 1 KΩ)
- Audio Input 1-ch , RCA (2.0 Vp-p, 1 KΩ)，8-ch via coaxial cable
- Two-Way Audio1 -ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Recording
- Video Compression H.265 Pro+ /H.265 Pro / H.265 / H.264+ / H.264
- Encoding Resolution8 MP / 5 MP / 3K / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
- Frame Rate
Main stream:
8 MP @ 8 fps / 3K@ 12 fps / 5 MP @ 12 fps / 4 MP@ 15 fps /8 MP Lite @15 fps /1080p / 720p@ 25 fps (P)/30 fps (N)
Sub-stream:
WD1 / 4CIF / CIF@ 25 fps (P) /30 fps (N)
- Video Bitrate 32 Kbps to 10 Mbps
- Dual-stream Support main stream or sub stream
- Stream Type Video, Video & Audio
- Audio Compression G.7 11u
- Audio Bitrate 64 Kbps
- Decoding
- Decoding Capability up to 24-ch 1080 P @ 30fps
- Network
- Total Band width 256 Mbps
- Network Protocol TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
- Remote Connection 64
- Network Interface1, RJ 45 10M / 100M / 1000M self-adaptive Ethernet interface
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity up to 12 TB capacity for each disk
- Serial Interface RS- 485 (half-duplex)
- USB Interface
Front panel: 1 × USB 2.0;
Rear panel: 1 × USB 3.0
- Alarm In / Out N / A (optional to support)
- General
- Power Supply 12 VDC, 2 A
- Consumption ≤ 10 W (without HDD)
- Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H) 319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)Weight≤ 2 kg (4.4 lb)
