Hikvision
Hikvision DS-7108HGHI-M1/T
Rs 12,000

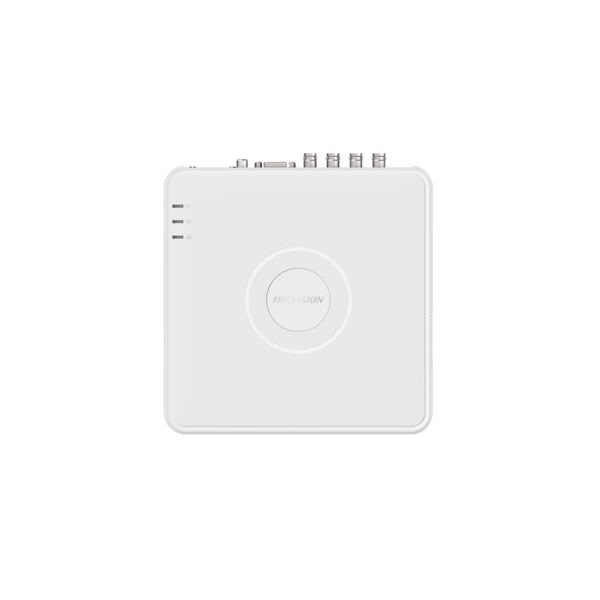

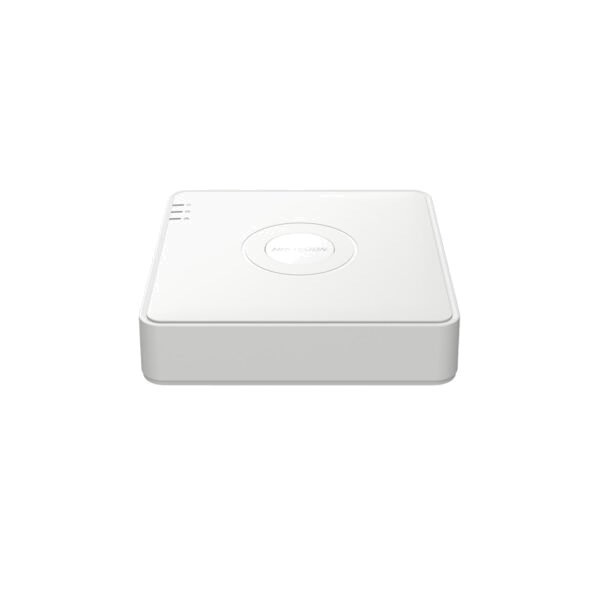

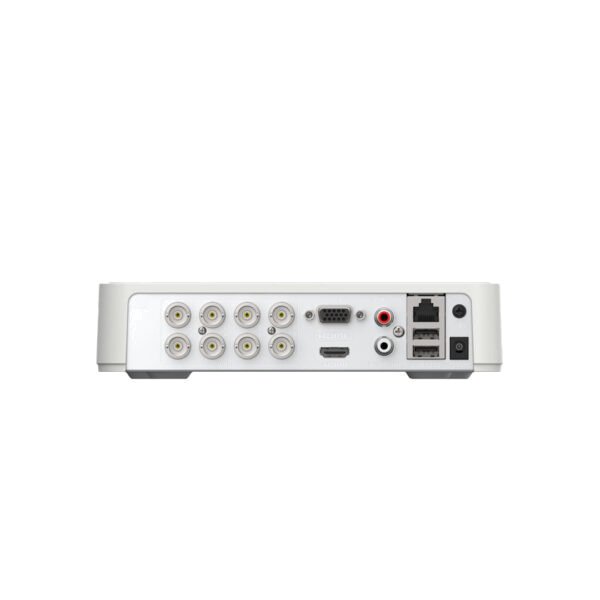

8-ch 1080p Lite Mini 1U H.265 DVR
- Support all channels motion detection technology
- H.265 Pro+/H.265 Pro/H.265 video compression
- HDTVI/CVI/AHD/IP/CVBS video inputs
- Audio over coaxial cable
- Support all channels HDTVI two-way audio technology
- Up to 10-ch IP camera inputs
Need a spec check, a bulk price or installation with it? Send an enquiry about this product
- 100% original — 2 Years Official Warranty
- Free delivery over Rs 10,000 — cash on delivery available
- Installation available — call Asad on 0324-4298577
Specifications & details
- Motion Detection 2.0
- Human / Vehicle Analysis
Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
Quick search by object or event type is supported;
- Video and Audio
- IP Video Input
2-ch (up to 10-ch)
Up to 5MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
8-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDTVI Input 1080p25, 1080p30, 720p25, 720p30
- AHD Input 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input 1080p25, 1080p30, 720p25, 720p30
- CVBS InputSupport
- HDMI Output
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Video Output Mode HDMI/VGA simultaneous output
- Audio Input
1-ch RCA (2.0 Vp-p, 1 KΩ)
8-ch via coaxial cable
- Audio Output 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio Reuse the first audio input
- Synchronous playback 8-ch
- Recording
- Video Compression H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
For 720p stream access: 720p/WD1/4CIF/VGA/CIF
For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
Main stream:
For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@15 fps
For 720p stream access: 720p/WD1/4CIF/VGA/CIF@15 fps
For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
Sub-stream:
For 1080p and 720p stream access CIF/QVGA@15 fps
For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate 32 Kbps to 4 Mbps
- Stream Type Video, Video & Audio
- Audio Compression G.711u
- Audio Bitrate 64 Kbps
- Network
- Total Bandwidth 72 Mbps
- Remote Connection 64
- Network Protocol TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP,UPnP™, HTTPS
- Network Interface 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA 1 SATA interface
- Capacity Up to 4 TB capacity for each disk
- USB Interface Rear panel: 2 × USB 2.0
- Alarm In/Out N/A
- General
- Power Supply 12 VDC, 1.5 A
- Consumption ≤ 10 W (without HDD)
- Working Temperature -10 °C to 55 °C (14 °F to +131 °F)
- Working Humidity 10% to 90%
- Dimension (W × D × H)200 × 200 × 48 mm (7.9 × 7.9 × 1.9 inch)
- Weight ≤ 1 kg (without HDD, 2.2 lb.)
