Hikvision
Hikvision DS-KIS212
Rs 18,500

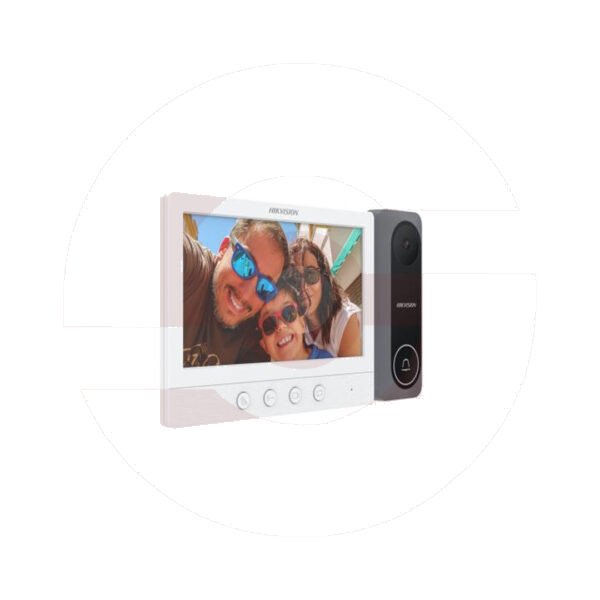

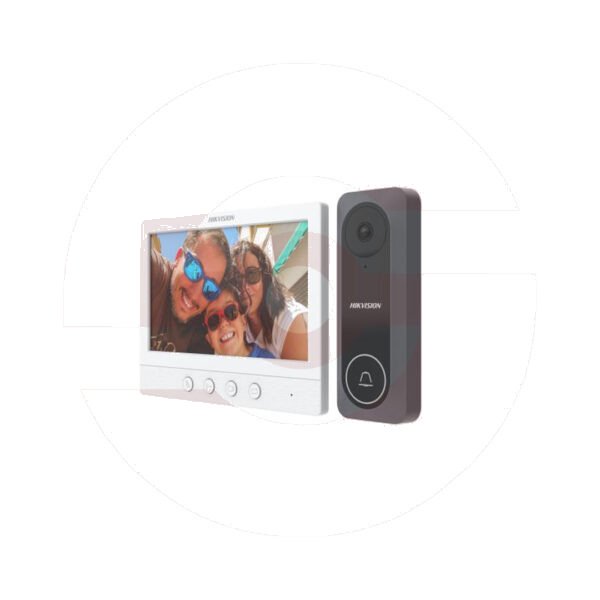

4-Wire HD Video Intercom Kit
- HD TVI video quality
- Plug & play
- One-press to call
- One-press to unlock the door
- Max 2 door stations and 3 indoor stations in one system
Need a spec check, a bulk price or installation with it? Send an enquiry about this product
- 100% original — 2 Years Official Warranty
- Free delivery over Rs 10,000 — cash on delivery available
- Installation available — call Asad on 0324-4298577
Specifications & details
- Door station/Video parameters
- Supplement light IR light, up to 3 m
- Resolution Stream resolution: 1280 * 720@60fps
- FOV Horizontal: 130°，Vertical: 70°
- Door station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Door station/Device interfaces
- Lock control 1 relay, max 30V 1 A
- Debugging port 1
- Four-wire 1 four-wire interface
- Door station/General
- Button 1 physical button(s)
- Indicator/
- Power supply 12 VDC
- Power consumption Max. 4W
- Working temperature -30° C to + 60° C
- Working humidity 10% to 90%
- Dimensions 136mm x 51mm x 20mm
- Application environment Indoor
- Installation Surface mounting
- Protective level/
- Material Plastic
- Indoor station/Display parameters
- Operation method Physical button
- Type 7-inch colorful TFT
- Resolution 1024 x 600
- Indoor station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loudspeaker
- Indoor station /Capacity parameters
- Linked indoor extensions capacity 2
- Linked doorphone capacity 2
- Linked analog camera 1
- Indoor station/Device interfaces
- Power supply input 12V DC
- Debugging port 1
- Four-Wire interface 4, 2 for indoor extentions, 2 for doorphones
- DIP switch 1 Bit
- BNC 1
- Indoor station/General
- Button 4 physical button
- Power supply 12 VDC
- Power consumption ≤5 W
- Working temperature -10° C to + 55° C (14° F to 131° F)
- Working humidity 10% to 90%
- Dimensions (W × H × D)178mm x 132mm x 19mm
- Installation Surface mounting
- Application environment Indoor
- Protective level/
