Hikvision
Hikvision KIS606-P
Rs 32,000

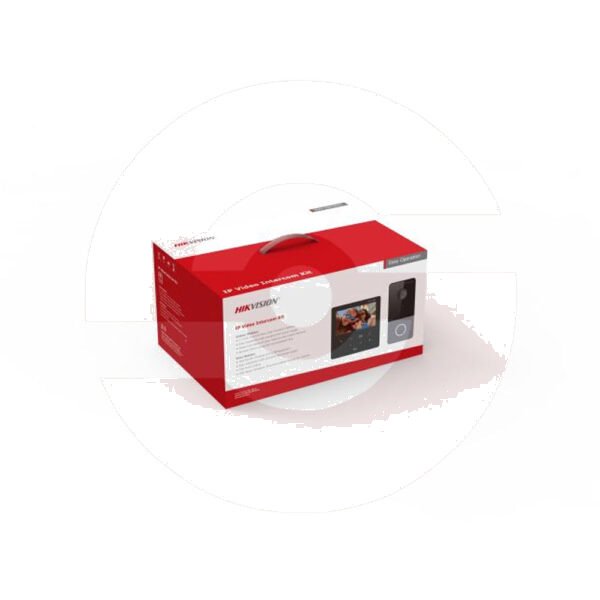

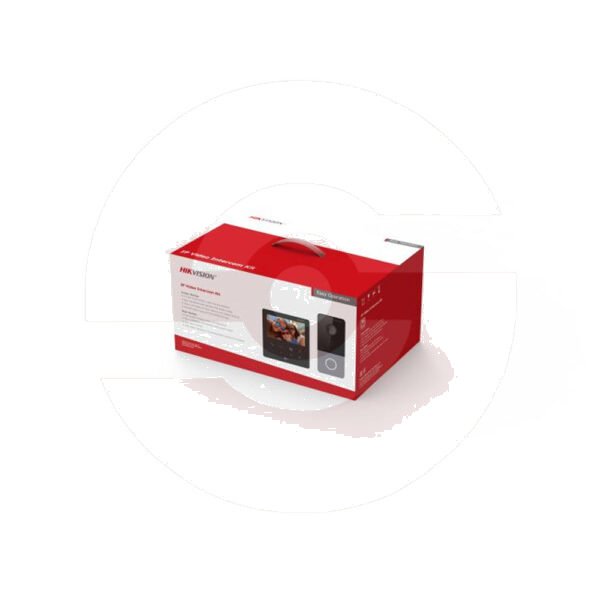

IP Video Intercom Kit
- Network video intercom kit for villa
- One-press call button for easier calls
- Convenient Hik-Connect APP mobile control
- Device included: DS-KV6113-PE1(C) × 1, DS-KH6110-WE1 × 1, DS-KABV6113-RS × 1, PSU × 2
- Power adapter included in the package
Need a spec check, a bulk price or installation with it? Send an enquiry about this product
- 100% original — 2 Years Official Warranty
- Free delivery over Rs 10,000 — cash on delivery available
- Installation available — call Asad on 0324-4298577
Specifications & details
- Door station / System parameters
- Operation system Linux
- Processor Embeded high performance processor
- RAM 256 MB
- ROM 32 MB
- Door station / Video parameters
- Supplement light IR light, up to 3 m
- Resolution
Main stream: 1920 × 1080p
Sub stream: 704 × 576p
- Lens2MP HD camera
- Wide dynamic range (WDR)120 dB
- Field of view Horizontal: 131°, Vertical: 78°
- Video Compression StandardH.264
- Door station / Audio parameters
- Audio input 1 built-in omnidirectional microphone
- Audio output 1 built-in loudspeaker
- Audio quality Noise suppression and echo cancellation
- Volume adjustment Adjustable
- Audio compression standardG.711 U
- Audio compression Rate 64 Kbps
- Door station / Capacity parameters
- User capacity 2000
- Linked indoor station capacity 16
- Card capacity 10000
- Door station / Network parameters
- Network protocol TCP / IP, RSTP
- Door station / Device interfaces
- Network interface1 RJ-45, 10/100 Mbps self-adaptive
- RS-485 1
- Alarm input 4
- Lock control 1 relay, Max. 30 VDC 2 A
- Exit button 1
- Door contact input 1
- TAMPER 1
- Door station / General
- Button 1 physical button(s)
- Power consumption＜ 10 W
- Working temperature-40 °C to 55 °C(-40 °F to 131 °F)
- Working humidity10% to 95% (no-condensing)
- Dimension 138 mm × 65 mm × 27 mm (5.4″ × 2.6″ × 1.1″)
- Installation Surface mounting
- Protection level IP65
- Indicator 2
- Application environment Outdoor
- Power supply
IEEE 802.3af, standard PoE
12 VDC
- Weight Net weight: 0.190 kg； Gross weight: 0.414 kg
- Indoor station / System parameters
- Operation system Embedded Linux operation system
- RAM 128 MB
- ROM 16 MB
- Processor Embedded processor
- Indoor station / Display parameters
- Display resolution 480 × 272
- Operation method Capacitive touch screen with 9 touch buttons
- Screen size4.3-inch colorful TFT screen
- Type Colorful TFT screen
- Indoor station / Video parameter
- Video compression standard /
- Resolution /
- Lens /
- Wide dynamic range (WDR) /
- FOV /
- Indoor station/Audio parameters
- Audio input Built-in omnidirectional microphone
- Audio output Built-in loud speaker
- Audio quality Noise suppression and echo cancellation
- Audio compression standard G.711 U, G.711 A
- Audio compression bitrate64 Kps
- Volume adjustment Adjustable
- Indoor station / Capacity parameters
- Notice capacity 200
- Linked indoor extensions capacity16
- Indoor station / Network parameters
- Network protocol TCP/IP, SIP, RTSP
- Wi-Fi Wi-Fi 802.11 b/g/n, 2.4 GHz
- Indoor station / Device interfaces
- Network interface 1 RJ-45 10/100 Mbps self-adaptive
- Indoor station / General
- Button 9 physical button
- Power consumption ≤ 4 W
- Power supply IEEE 802. 3af, Standard PoE,12 VDC
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity 10% to 95% (no-condensing)
- Dimension (L x W x H) 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
- Dimension (W × H × D) 120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″)
- Installation Wall mounting, table mounting
- Application environment Indoor
- Protective level/
- Weight With package: 336.6 g Without package: 197.8 g
- Language English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
